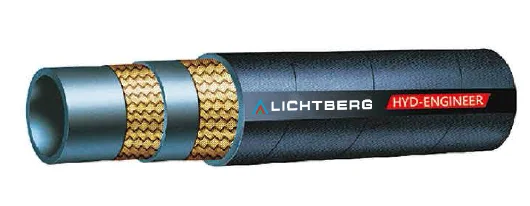

102 Large-Diameter Double Wire-Braided Hose

Description
The 102 Large-Bore Double Wire-Braid Hose is designed for reliable pressure transmission in mobile and industrial hydraulic systems.

The inner layer ensures fluid compatibility, the reinforcement layer provides pressure resistance, and the outer cover offers environmental durability. The correct size should be selected based on working pressure, temperature, bend radius, and fitting type.

Specifications
Standard
GB/T3683-2023 / MT/T98-2015 / Q/0883ZJT006-2025
Inner tube
NBR or CR synthetic rubber
Reinforcement
Two layers of high-strength steel wire braid
Outer cover
Oil, weather, and abrasion-resistant synthetic rubber
Compatible fluids
Petroleum-based and water-glycol hydraulic oils, mineral oil, emulsions, air, and water
Temperature range
-40°C to +100°C
Brand
LICHTBERG
